Description / Ref Atlas/AMSS K Loader Aircraft Main Deck Loader - 50322

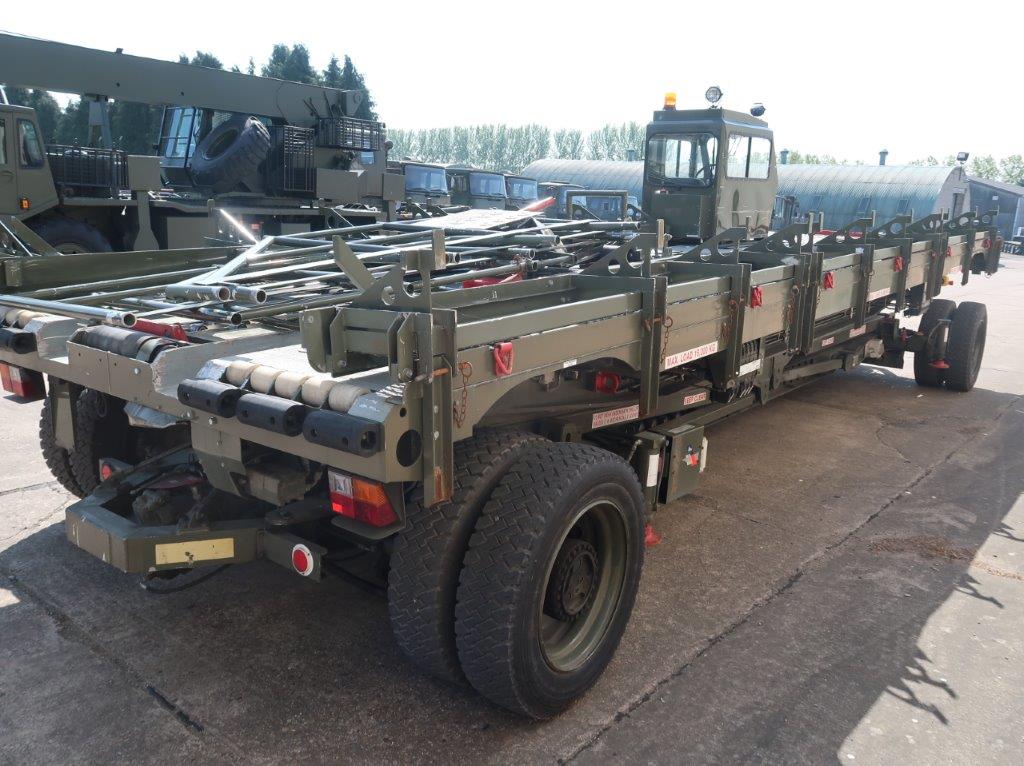

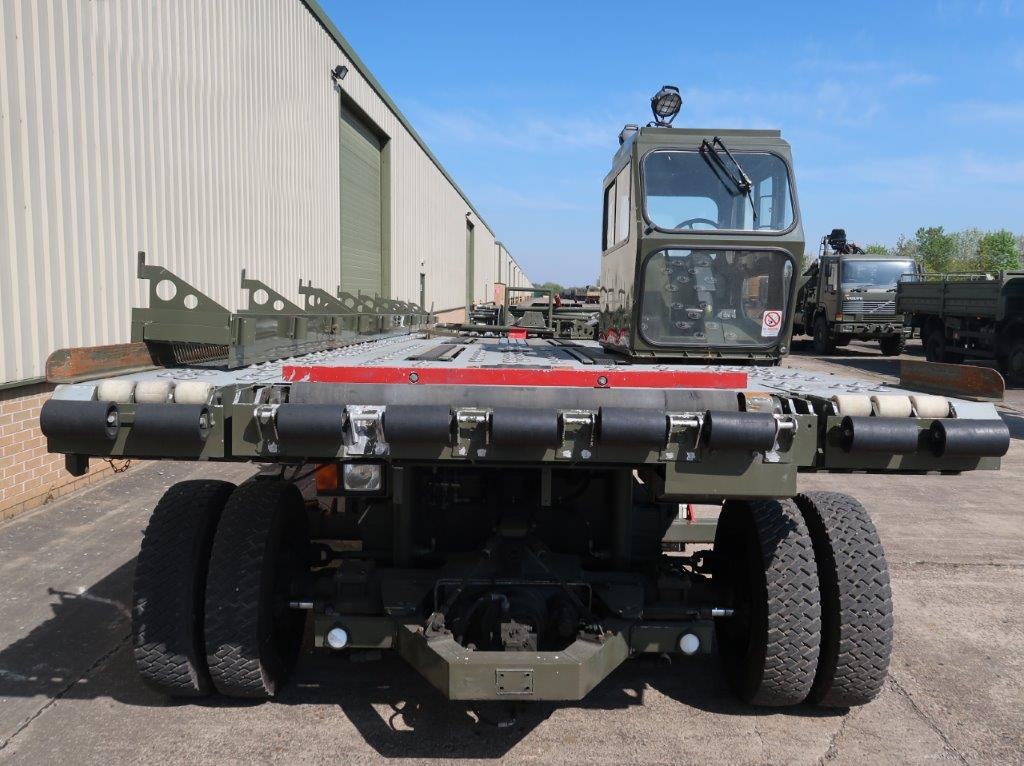

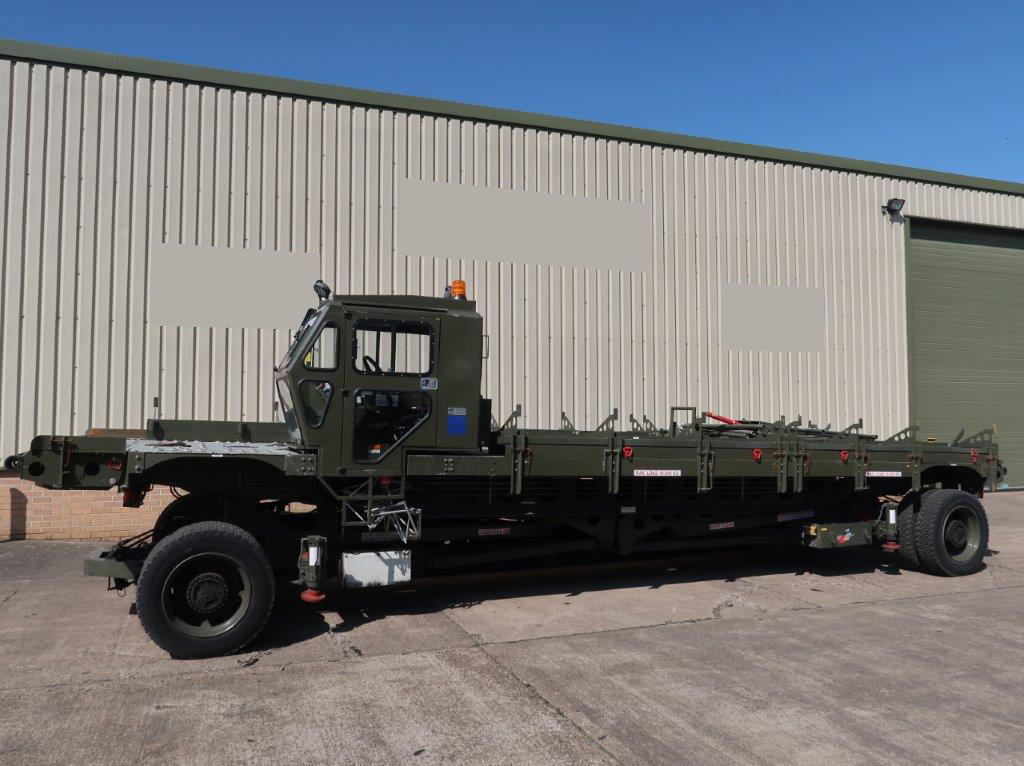

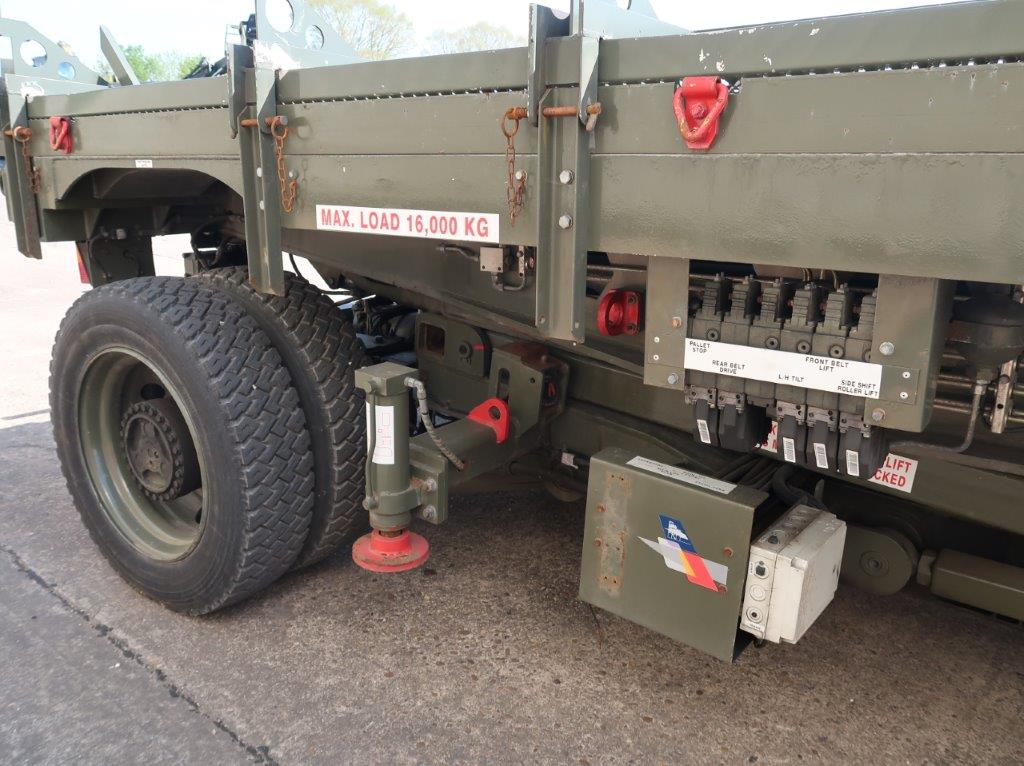

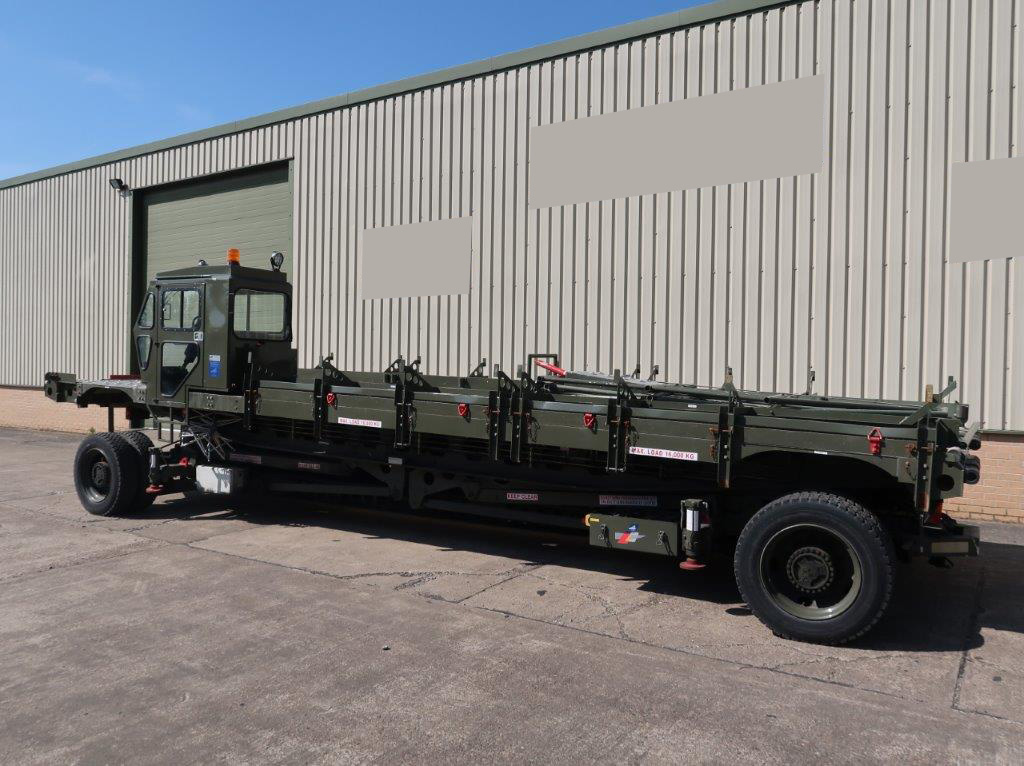

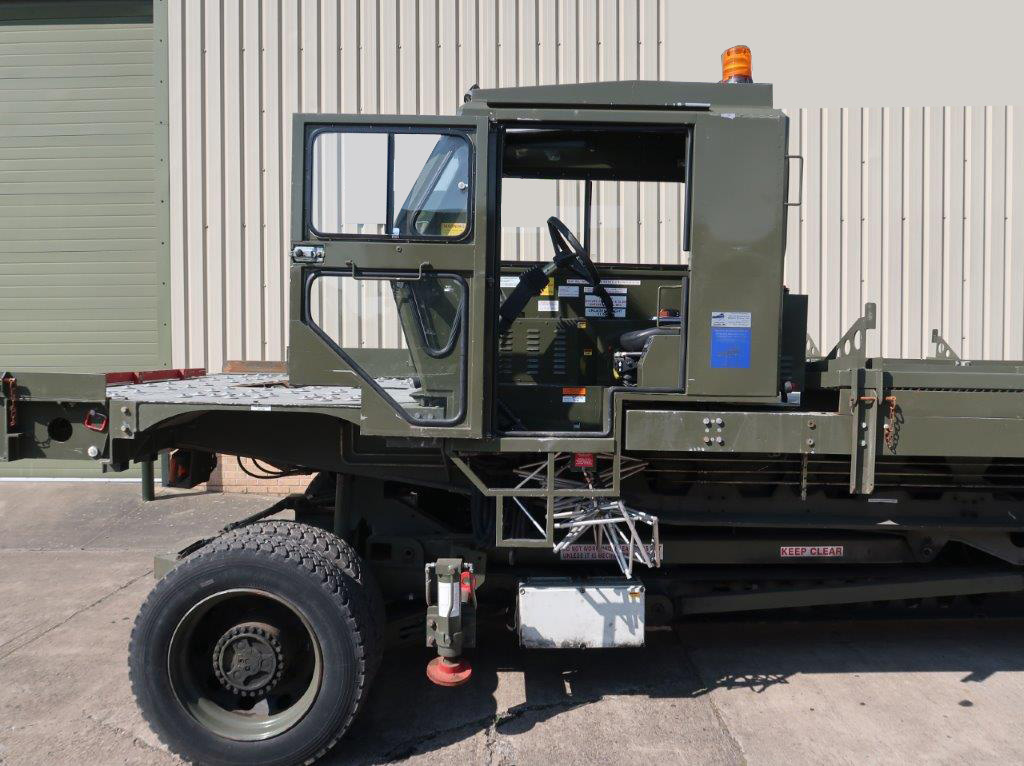

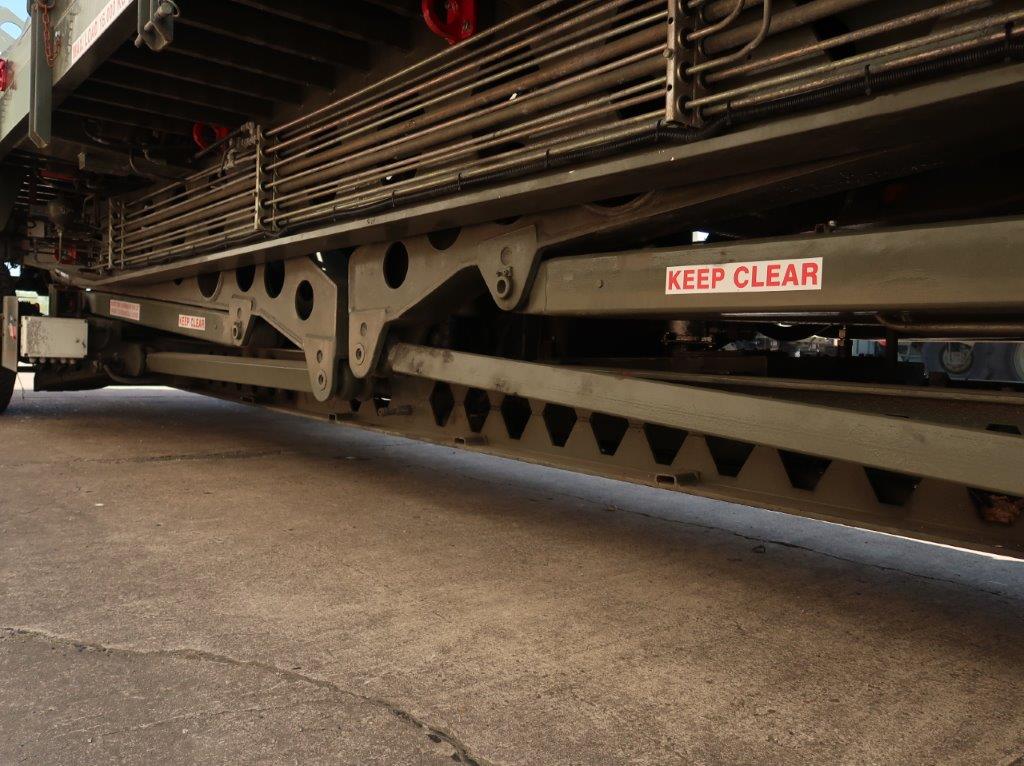

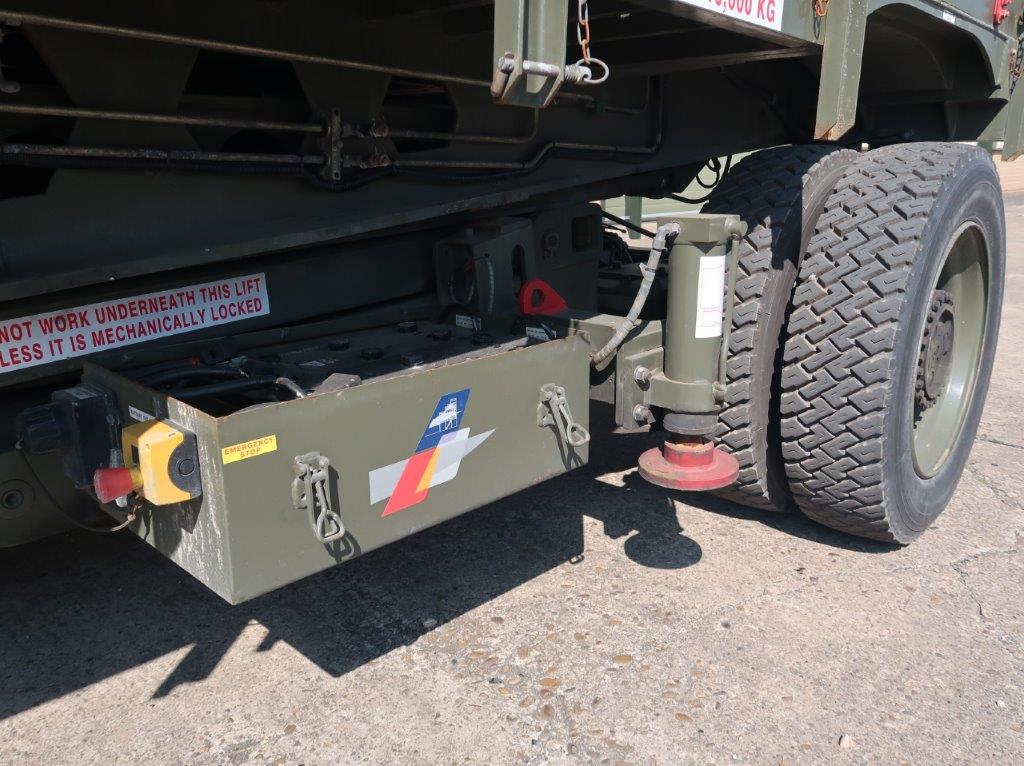

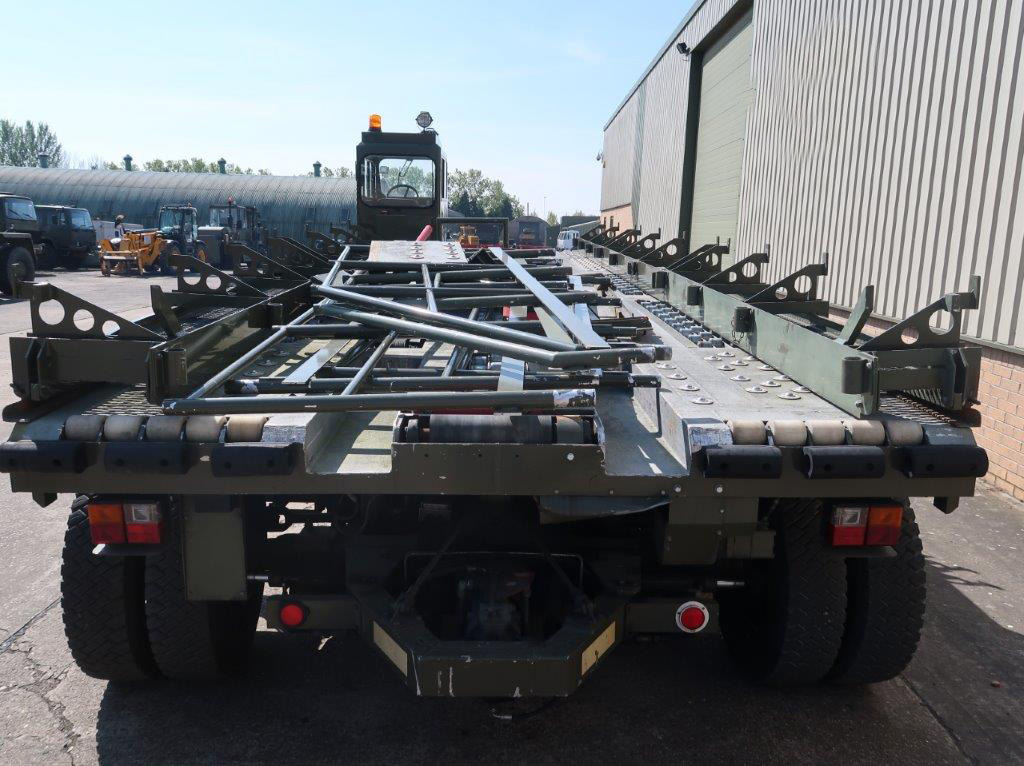

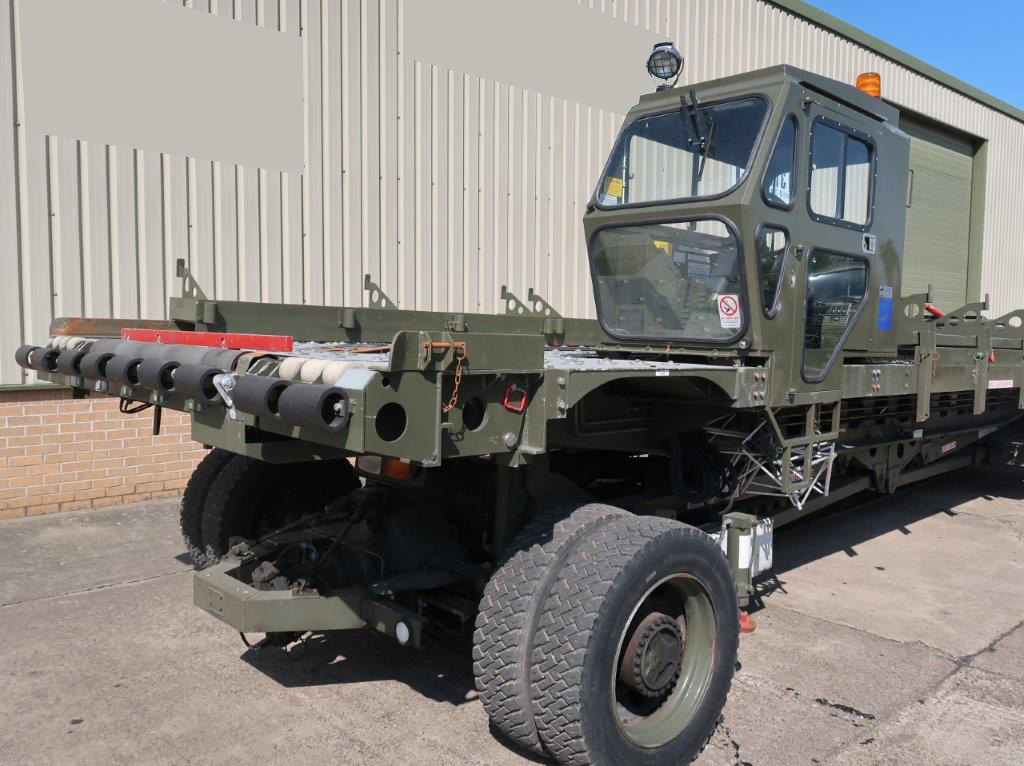

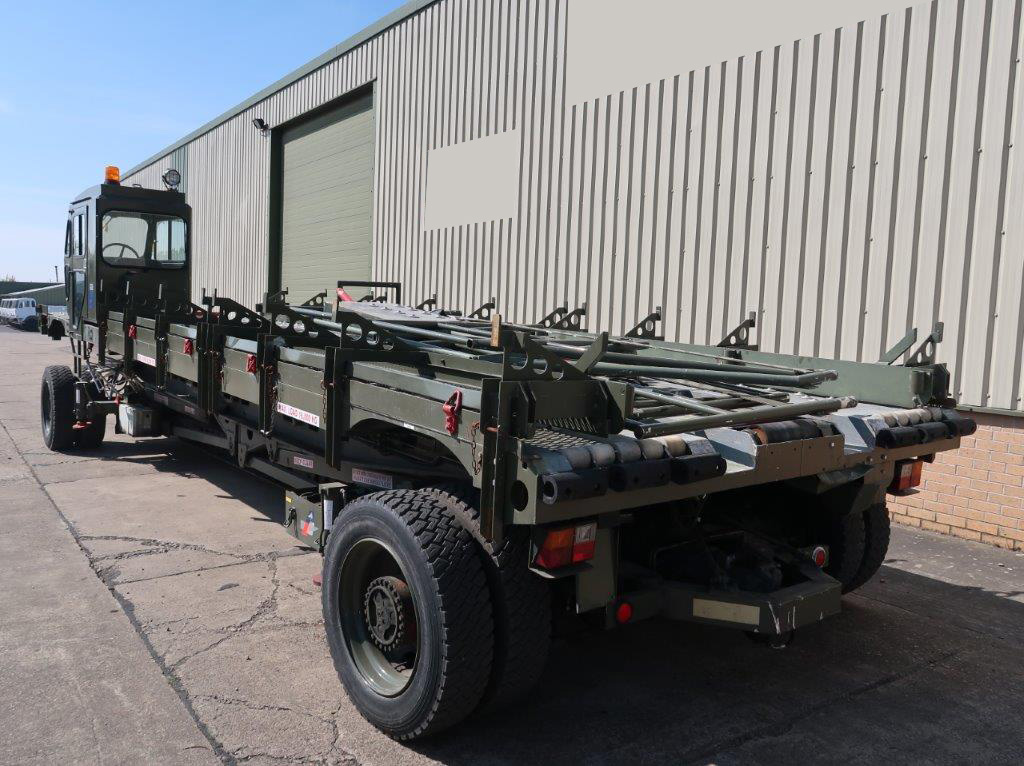

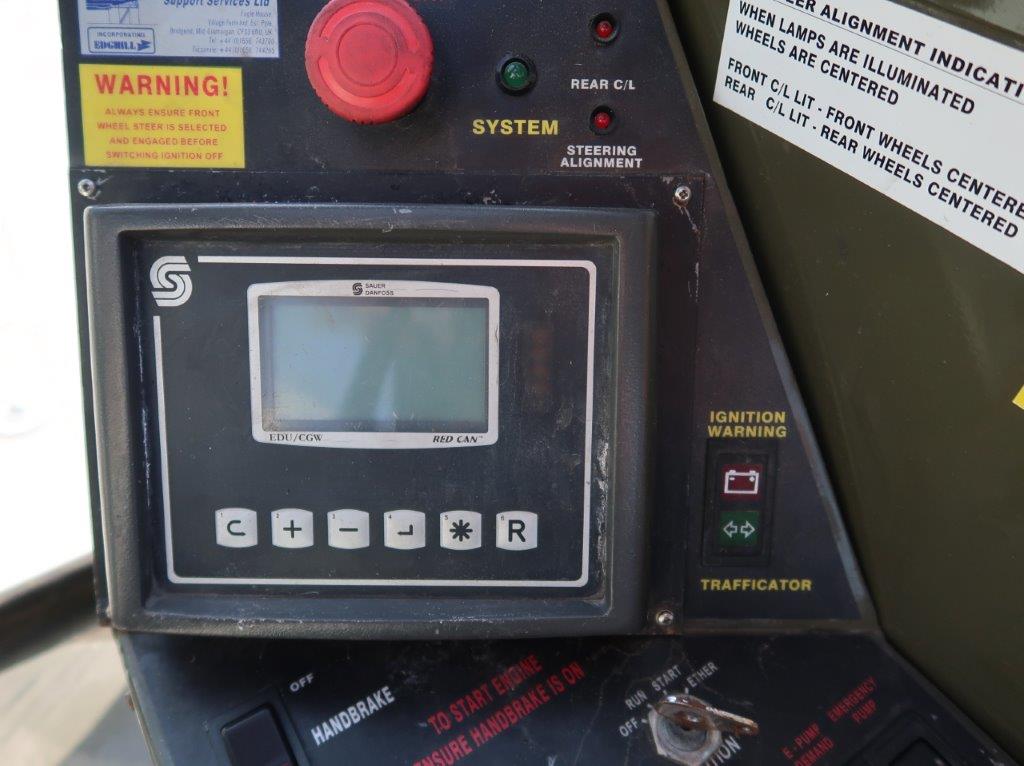

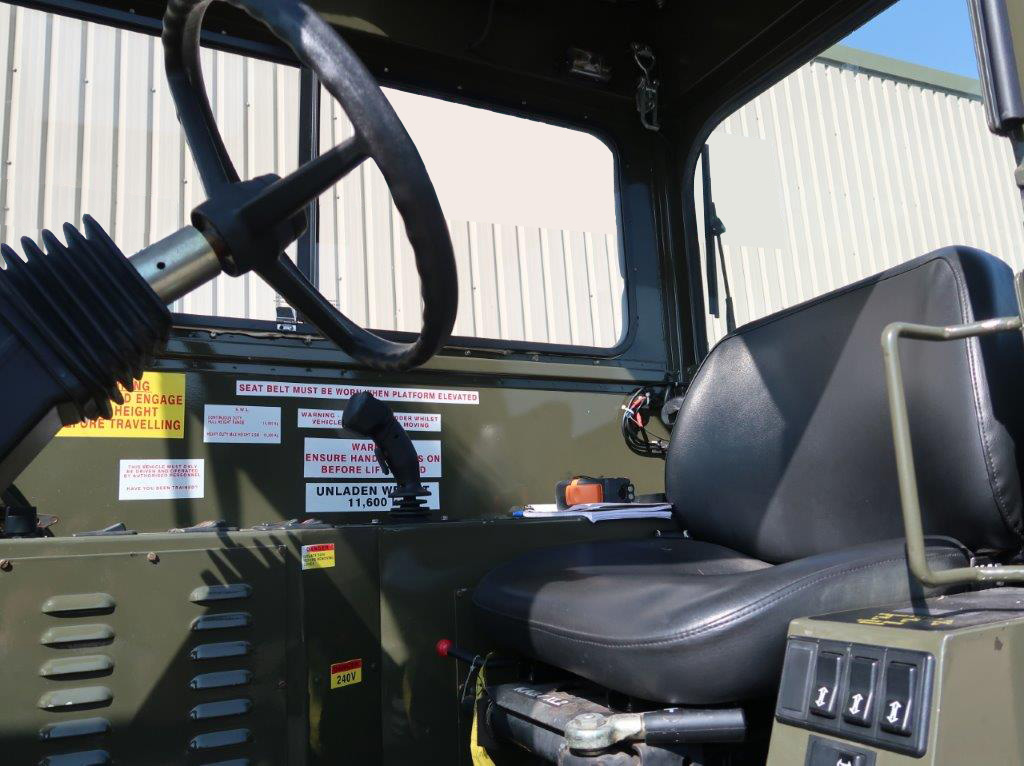

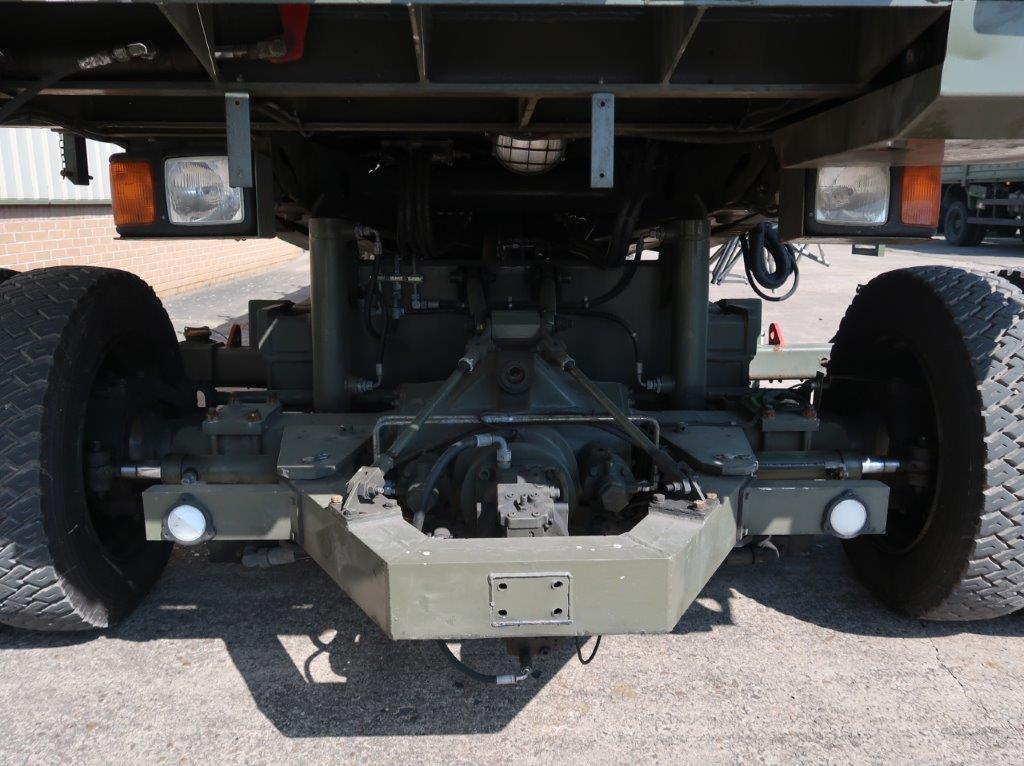

Photo (a gallery of photos is provided below - where available) Atlas/AMSS K Loader Aircraft Main Deck Loader
Details

Atlas K Loader Aircraft Main Deck Loaders

Direct from the RAF in excellent condition, choice of 2 Units available in stock

Fully air-transportable in C130 Hercules aircraft, the ATLAS “K Loader” is purpose designed for military tactical and strategic logistics support.

Capable of lifting materiel between C130 cargo height up to Boeing 747 main deck, this loader lifts almost twice its own self weight with a payload of up to 20 tonnes

Aircraft capability

All aircraft cargo doors with sill heights of 990mm to 5,590mm, Optional pallet dolly interface trailer, height range 480mm to 1,000mm, Forward drop nose assemblies allowing interface with narrow lower lobe freight doors

Operational capability
Load Capacity - 18,000kg, Maximum Gradient Unladen 1 in 4 (25%) Laden 1 in 14 (8%), Speed Range: Unladen forward
maximum 32kph; Unladen reverse limited to 10kph; Load platform elevated limited to 15kph, Environmental envelope -25°C to +50°C

Air-portable configuration
Length 10,130mm, Width – Platform 2,870mm – Over Tyres 2,580mm, Height 2,430mm, Unladen Weight 11,350kg ,Wheel Load (average) 2,750kg

Load platform

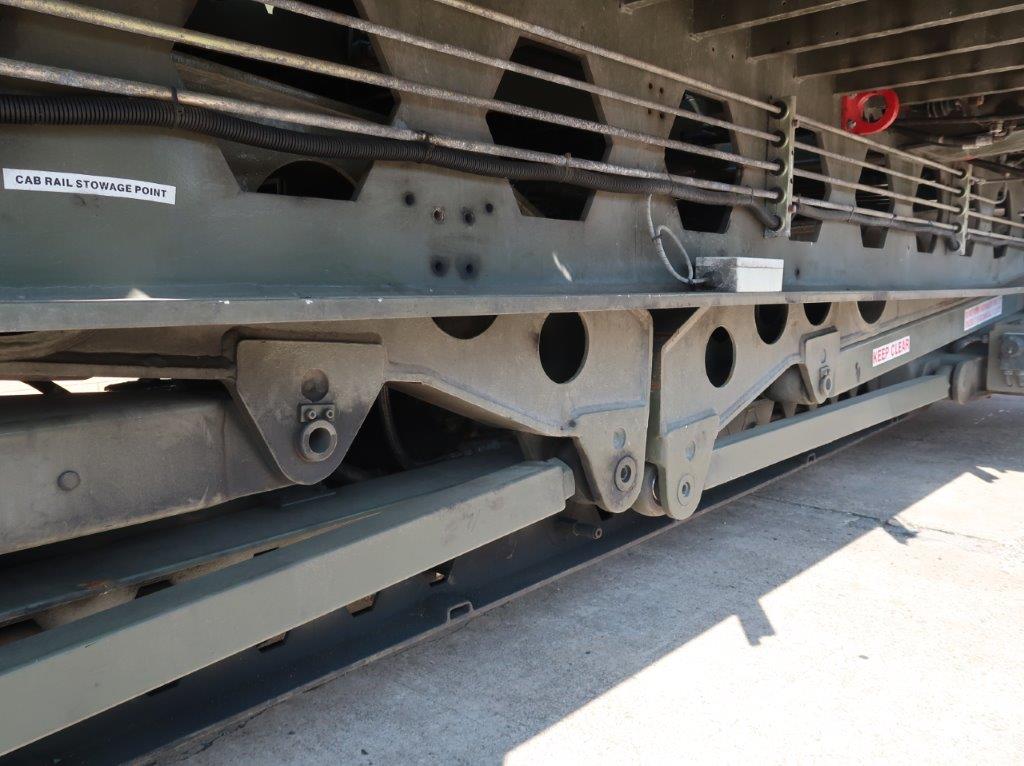

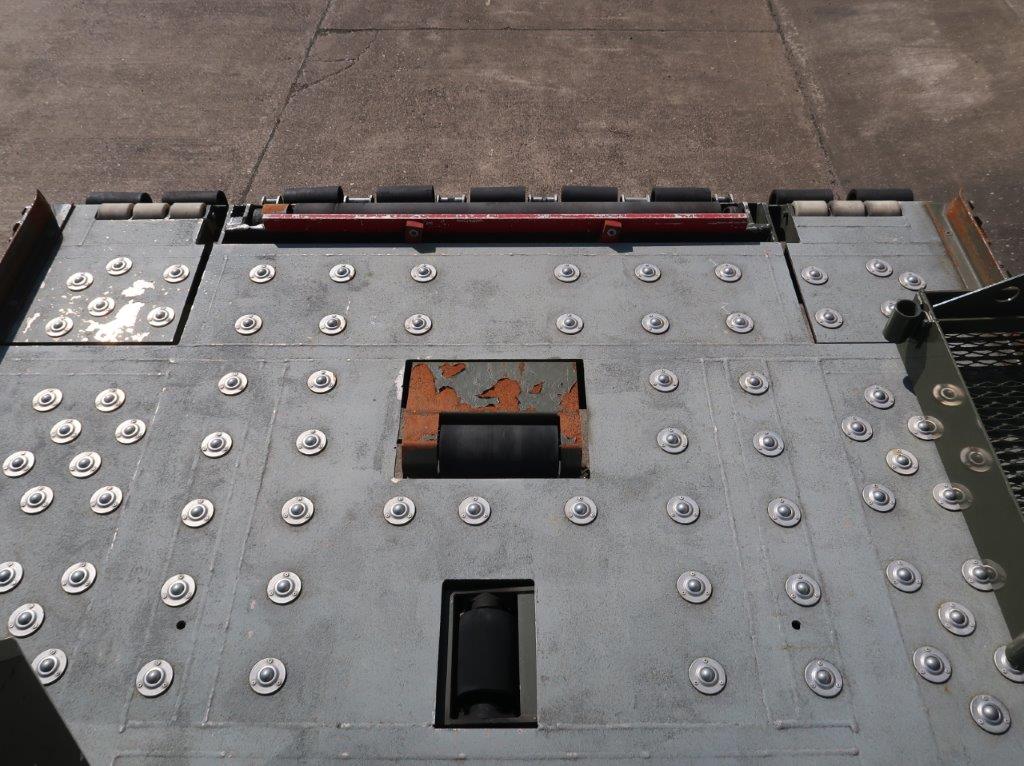

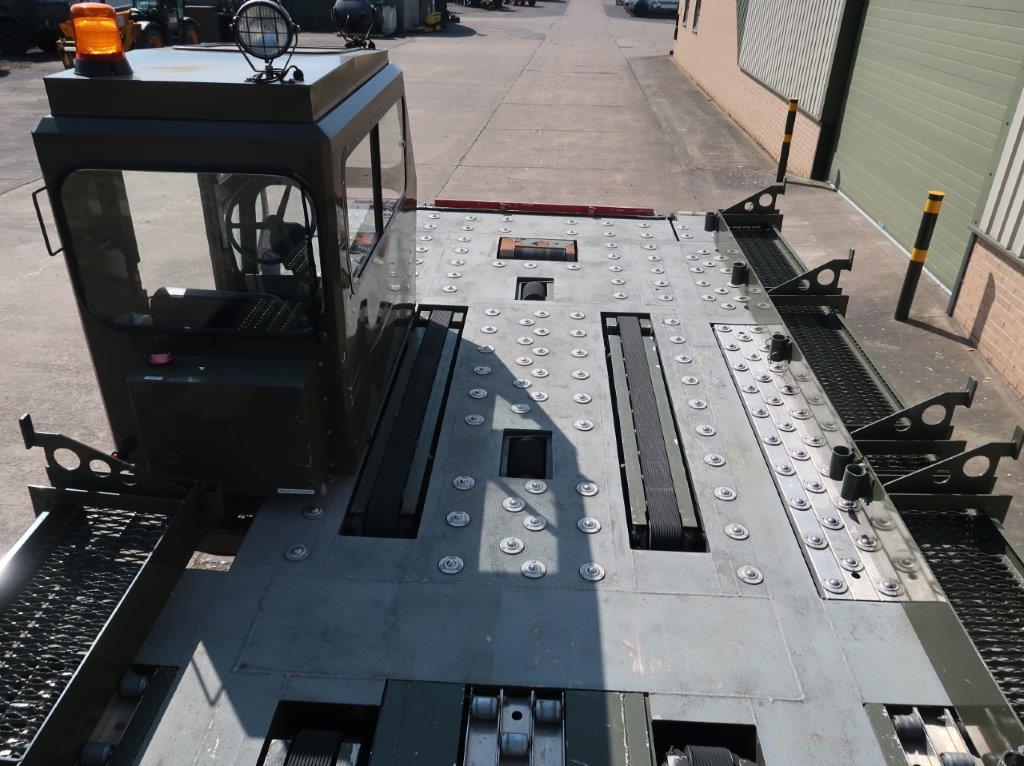

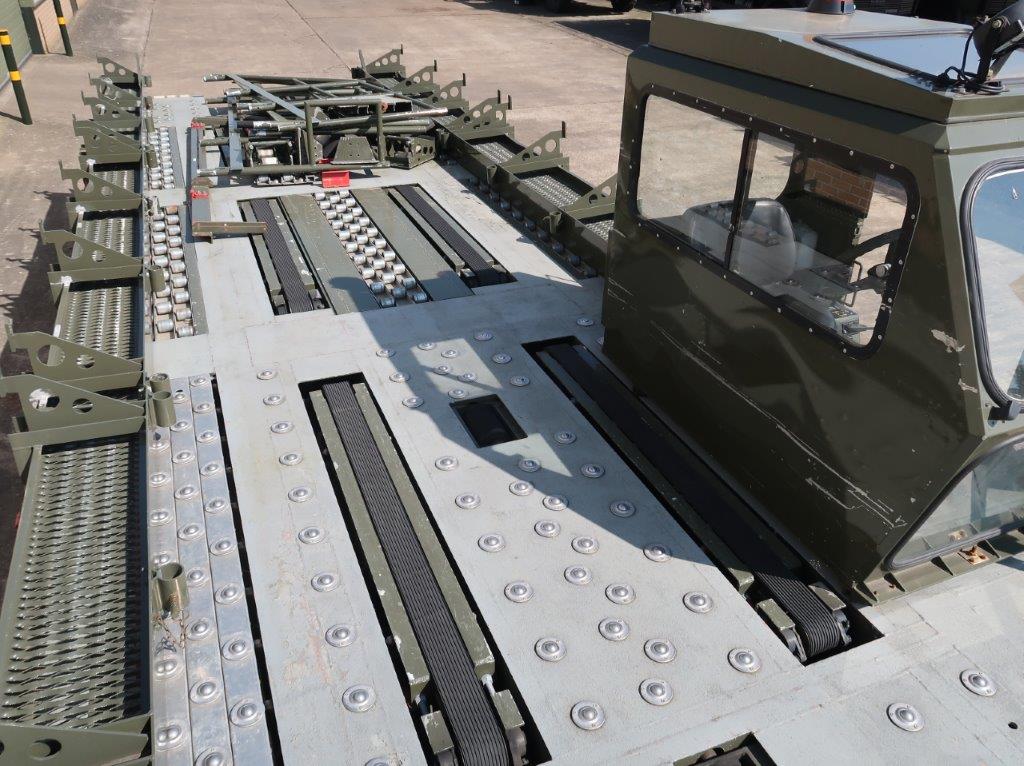

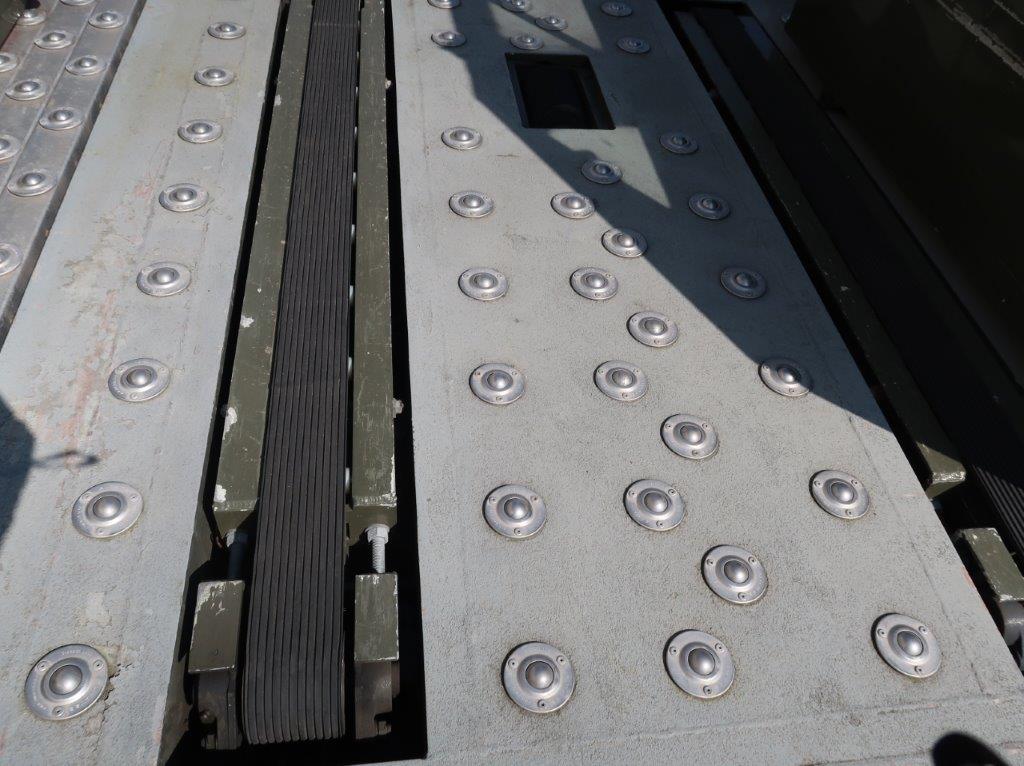

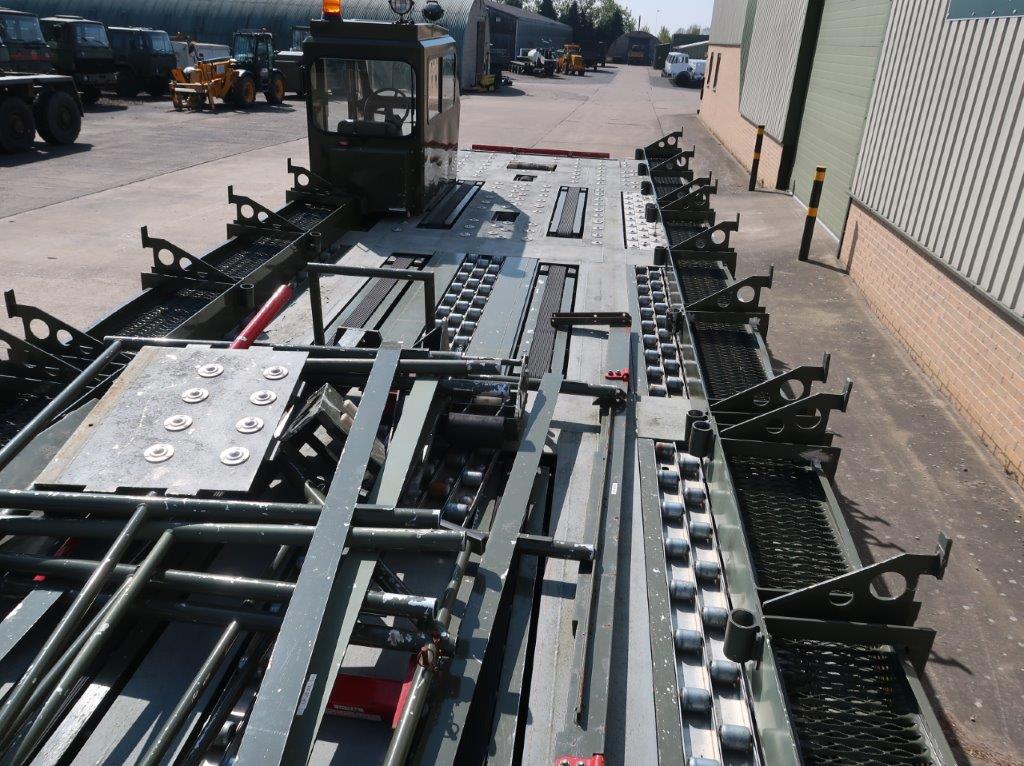

Length between stops 9,240mm, width between main guides 2,775mm, Width between “drop in” guides 1,825mm, 4 Zone Operator selectable longitudinal variable speed powered pallet drives, 4 off 108 x 88 inch pallet capacity, powered variable speed pallet side shift, platform pitch ±5°, platform Roll ±5°, platform side shift ±51mm ±0.8°, freight lashings 6 off per side, powered pallet stops, heavy duty rollers and stainless steel ball units for pallets and containerised loads, multiple heavy duty impact resistant powered pick up rollers fitted to platform front and rear, shock absorbing rubber buffers for soft aircraft interface, easily deployable, hinged walkways and safety handrails fitted to both sides of the load platform with adjustable trombone/folding sections to accommodate differing aircraft profiles

CE plated

Videos (if available)
Video of Atlas/AMSS K Loader Aircraft Main Deck Loader
Category Airfield Support Length 9.60 M
Manufacturer Atlas Height 2.50 M Lowered Height
Engine Cummins 6BT Cylinder Width 3.00 M
Gearbox GVW 11,350Kg

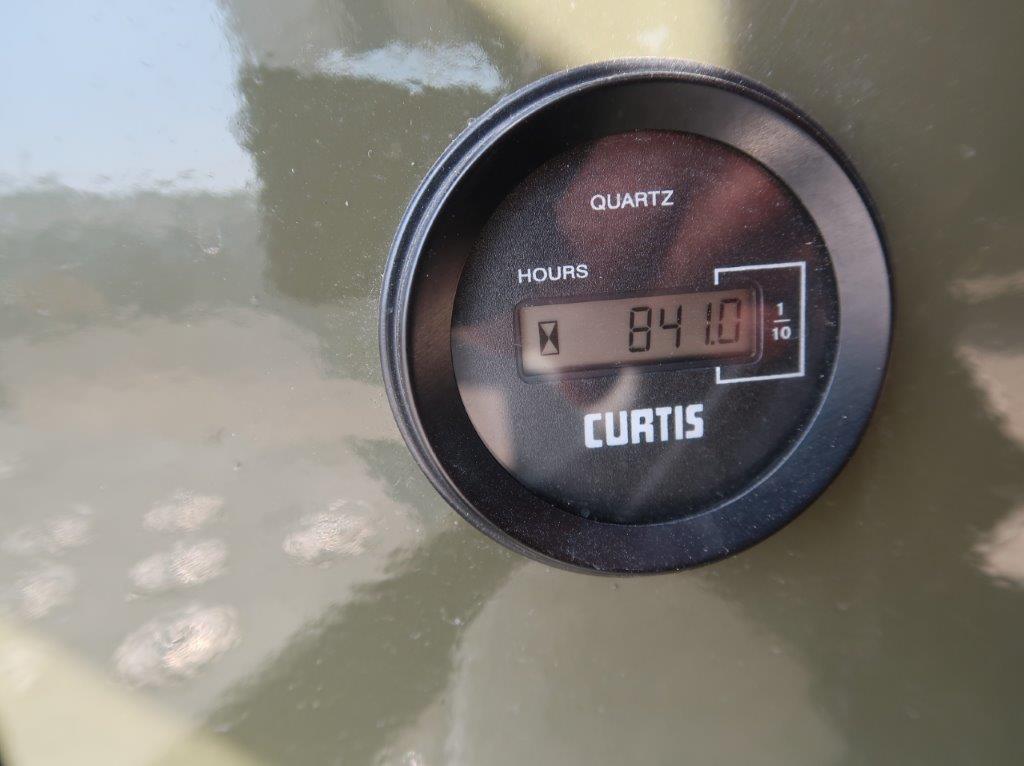

Brakes Hrs_Kms 840 Hours ONLY

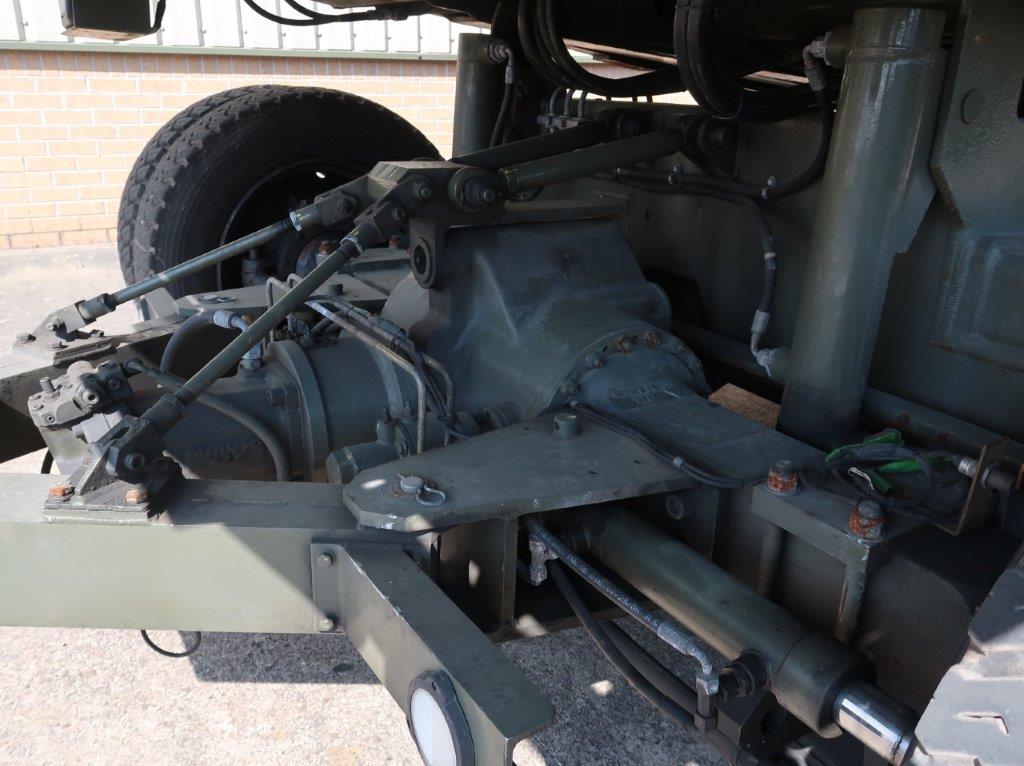

Steering 2/4 Wheel Steer/Crab steer Date into Service
Tyres Michelin 255/70R22.5 Year of Manufacture 2006

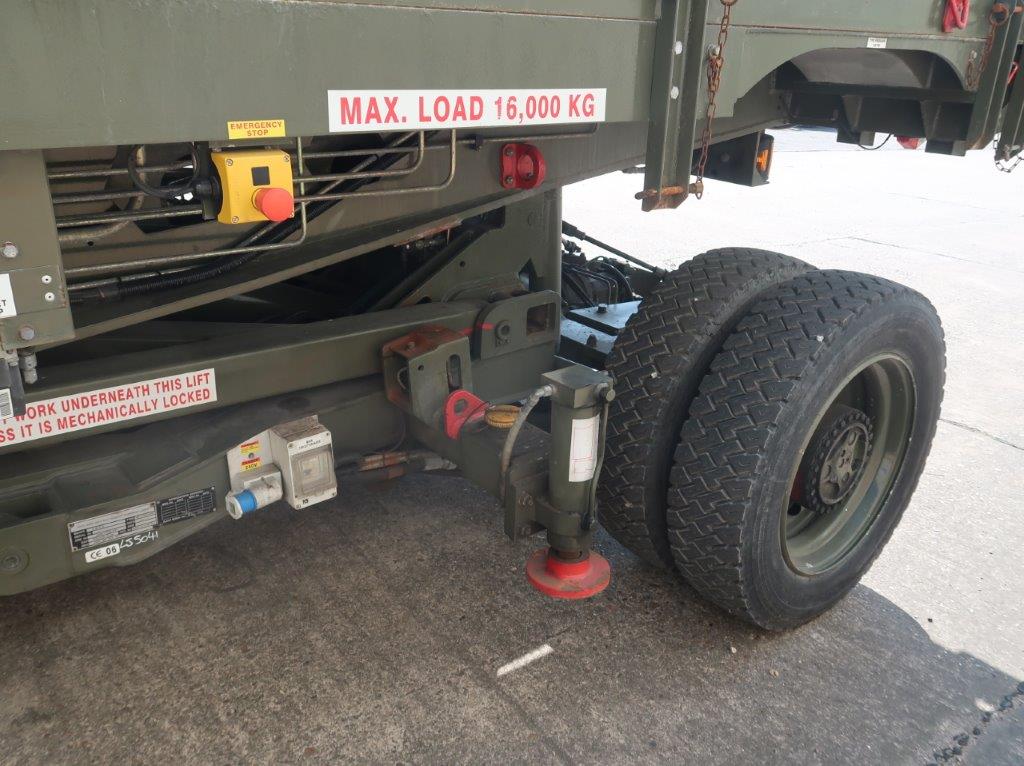

Max Load 18,000 Kg Qty Available 2
Electrics 24 volts Export Requirements ...more SIEL
This email address is being protected from spambots. You need JavaScript enabled to view it. or call us on UK +44(0)1302-954007 or whatsapp msg us on +44 (0)7785-736649

P h o t o   G a l l e r y




All prices qoted are GBP U.K. Pounds Sterling Ex. Works excluding VAT where applicable and shipping / associated costs.
Vehicles advertised are subject to remaining unsold.
All prices quoted are based on "per individual unit" purchased, any reductions on advertised price for multiple item orders is subject to negotiation and is conducted at the time of inspection or provision of LOI.
For complete Terms & Conditions See Main Website
Photo's shown above may represent a vehicle type rather than an actual vehicle, vehicles are available serviced and painted to customers preference

An export licence may be required for items sold to customers outside of the U.K.
